Sound Blaster Audigy Fx V2 DBPro

Expansion Card for Sound Blaster Audigy Fx V2

Features

Overview

Complete your audio upgrade with the Sound Blaster Audigy Fx V2 DBPro-an optional daughterboard expansion card with added functionalities designed to complement the Sound Blaster Audigy Fx V2. The Sound Blaster Audigy Fx V2 DBPro comes with DSD256 playback support, additional side channels for immersive 7.1 discrete surround, and an optical-out port for an expanded option to connect to an external amplifier.

7.1 Virtual Surround

7.1 Discrete Surround

Optical-Out

DSD256 Playback

Audio

HIGH-RESOLUTION PLAYBACK

Capable of DSD256 playback, get a huge performance boost especially for music files with high sample rate when you add the Sound Blaster Audigy Fx V2 DBPro to your PC rig. That's on top of the original high-fidelity playback delivered by Sound Blaster Audigy Fx V2's audio resolution at 24-bit / 192 kHz and 120 dB DNR.

7.1 SURROUND SOUND

Experience better immersion with discrete 7.1 surround for multi-directional audio in your games and movies with the Sound Blaster Audigy Fx V2 DBPro. The sound card's additional side channels upgrade your cinematic experience from 5.1 to 7.1 surround. Additionally, you can plug in your headphones for an equally immersive 7.1 virtual surround listening experience.

Connectivity

CONNECT CONVENIENTLY

The Sound Blaster Audigy Fx V2 DBPro comes with an additional optical-out port for your external digital amplifiers and individual 7.1 playback end points for your Front, Side, and Rear panel stereo outputs. For convenience, the headphone / front port also acts as a 4-pole headset port, so you can easily connect your headset to it.

Sound Blaster Audigy Fx V2
Line-in port
Mobile Devices / MP3 Players
Mic-in port
External Microphone (mono)
Headphone / Front (L / R) port
4-pole Headset / Headphone / Front channels for Stereo Speaker or 7.1 Analog Speaker System
Rear (L / R) port
7.1 Analog Speaker System
Center / Subwoofer port
7.1 Analog Speaker System
Sound Blaster Audigy Fx V2 DBPro
Side-out port
7.1 Analog Speaker System
Optical-out port
Speakers with Optical-in / AV Receiver

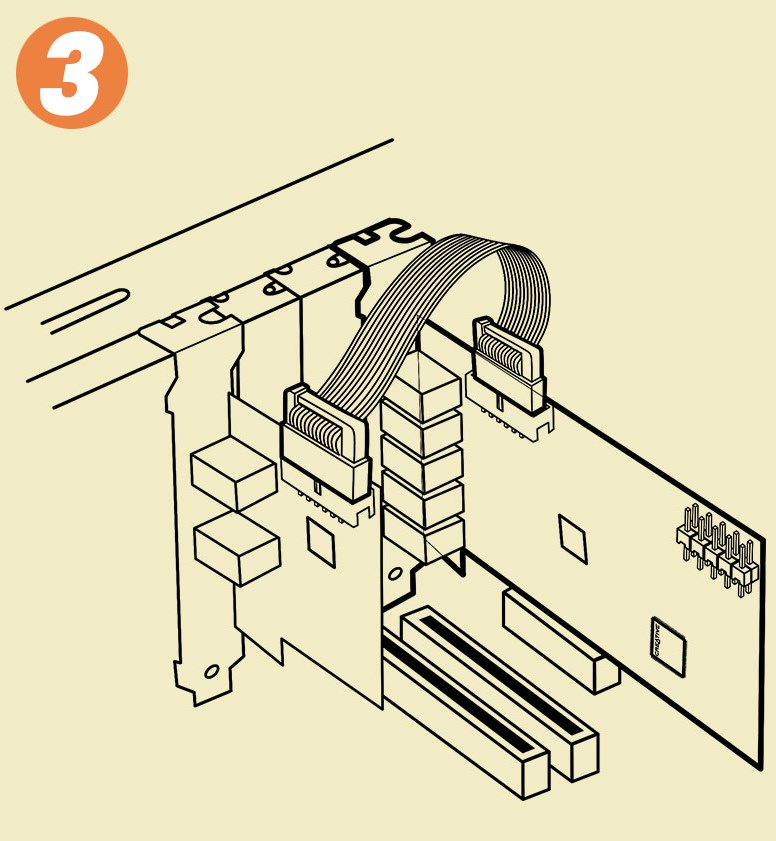

HOW TO INSTALL THE DBPRO

Attach the provided interconnect cable to Sound Blaster Audigy Fx V2 DBPro.

Inside the PC, attach the other end of the interconnect cable to Sound Blaster Audigy Fx V2's DBPro connector.

Mount the Sound Blaster Audigy Fx DBPro onto any available mount bracket in the PC, and you're done!

Design

AUDIO BOOST WITH SOUND BLASTER AUDIGY Fx V2

On its own, the Sound Blaster Audigy Fx V2 features 5.1 surround sound, high-quality audio with 120 dB SNR, 24-bit 192 kHz playback, and our latest audio innovation-SmartComms Kit-a suite of smart communication features designed to improve the way you communicate online. It is the perfect addition to your PC rig for an instant audio enhancement and to offload your PC's load capacity for better performance in other critical tasks, like graphics.

Learn More

A Closer Look

Specifications

Weight
DBPro Board: 32g / 1.13 oz, Interconnect Cable:6g / 0.21 oz, Half-Height Bracket: 12g / 0.42 oz
Dimensions
DBPro Board: 121 x 54.7 x 21.6 mm / 4.76 x 2.15 x 0.85 inches, Half-height Bracket: 80 x 21.6 mm / 3.15 x 0.85 inches, DBPro Cable (Length): 162 mm / 6.38 inches
Direct Mode
Optical Out (Stereo)*: PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
Line-out (Side Channel): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
DSD Playback
Headphone/Line Out (Stereo): Native DSD: DSD64, DSD128, DSD256
DoP: DSD64

Refer to Sound Blaster Audigy Fx V2 specifications for more details


Connectivity Options (Main)
1 x TOSLINK Optical Out, 1 x ⅛″ Side Out Jack
Power
PCI-e 1x–16x Bus, Half-height Profile (Full height and half height brackets provided)

System Requirements

  • Sound Blaster Audigy Fx V2 (Main board)
Windows® OS
  • Intel® Core™i3 or AMD® equivalent processor
  • Intel, AMD, or 100% compatible motherboard
  • Microsoft® Windows 10 32 / 64-bit or higher
  • Available PCI-e slot

Package Contents

  • Sound Blaster Audigy Fx V2 DBPro
  • Interconnect Cable
  • Half-height Bracket (Full height bracket mounted on board)
  • Quick Start Leaflet
  • Warranty Leaflets

Warranty

1-year Limited Hardware Warranty
